Piezo Buzzer External drive type

FT2310PT

Piezo_transducer_2310

SPECIFICATIONS

Rated Voltage 12.0Vp-p
Operation voltage 1~30Vp-p
Sound Pressure Level=SPL Min 80dB
Current Max 4mA
Oscillation frequency 3500±500Hz
Operating Temperature -20～+60℃
Storage temperature -30～+80℃
Externals size （mm） Φ23*H10
Mass 3g
Housing Material PPO

DIMEMSIONS

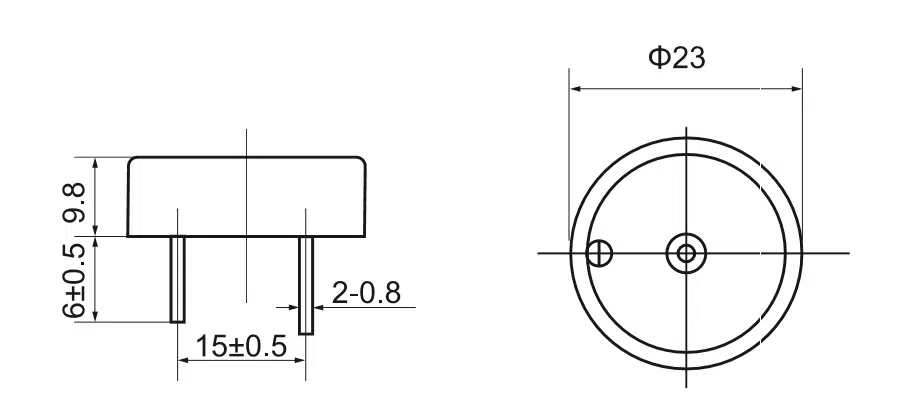

dimensions of Piezo transducer 2310

Unit:mm   Tolerance:±0.5mm

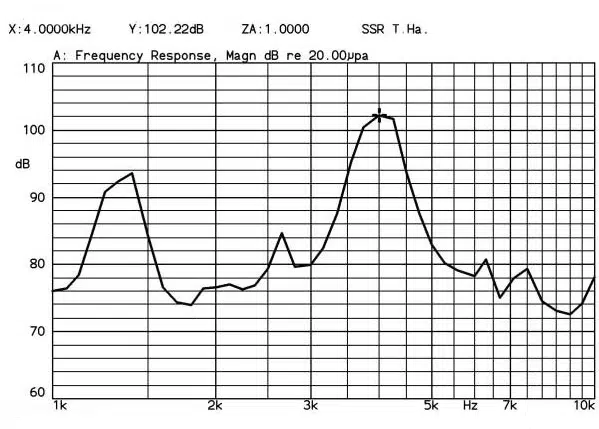

Frequency Response

Frequence consequence of Piezo transducer 2310
