Magnetic Buzzer Self-drive type

FT1614YB03

SPECIFICATIONS

Rated Voltage	3.0VDC
Operating Voltage	2.0~5.0VDC
Max.Rated Current	Max.40mA
Sound Pressure level(dB/min) at 10cm	Min 85dB
Coil Resistance(ohms)	50+/-5
Coil Impedance(ohms)	110
Resonant Frequency	2048Hz
Operating Temperature	-20 ℃~+70 ℃
Storage Temperature	-30 ℃~+80℃
Weight (g)	7

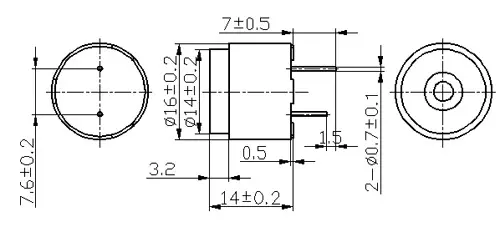

DIMEMSIONS

Unit:mm   Tolerance:±0.5mm

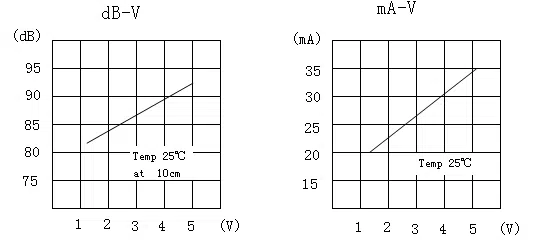

Typical Frequency Response Curve
