Magnetic Transducer External drive type

FT1201K01

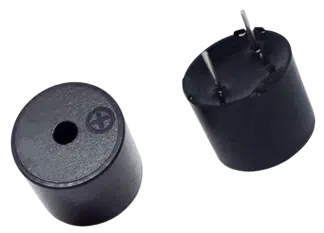

Magnetic Transducer FT1201K01 3VDC 9x12mm

SPECIFICATIONS

Rated Voltage 1.5Vo-p
Operation voltage 1~3Vo-p
Sound Pressure Level=SPL Min 80dB
current Max 15mA
Oscillation frequency 2048Hz
Coil Resistance ( Ω ) 42 ± 6
Operating Temperature -30～+80℃
Externals size （mm） Φ12*H9
Mass 1.8g
Housing Material PBT

DIMEMSIONS

Magnetic Transducer 1201 dimensions

Unit:mm   Tolerance:±0.5mm

Frequency Response

Frequency response of magenetic transducer 1210
