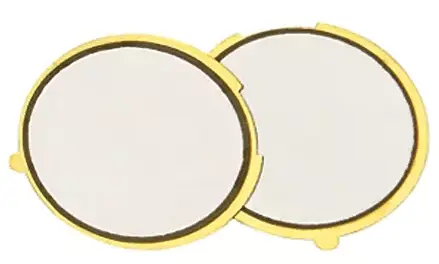

32mm Piezo Bimorph Element |
SPECIFICATIONS
|
Resonant frequency (Fr)
|
3.0±0.3 KHz
|
|||
|
Resonant resistance (R)
|
80Ω Max
|
|||
|
Electrostatic capacity (C)
|
140000±30%pF at 120Hz
|
|||
|
Dielectric loss
|
Max 5%
|
|||
|
Insulation resistance
|
Min 100MΩ @25VDC
|
|||
|
Material of metal plate
|
Brass(H65)
|
|||
|
Metal plate diameter (D)
|
Φ31.8 +0.1/-0.1 mm
|
|||
|
PZT plate diameter (d)
|
Φ31 +0.3/-0.3 mm
|
|||
|
Element total thickness (T)
|
0.56 ±0.05 mm
|
|||
|
Metal plate thickness (t)
|
0.15 ±0.01 mm
|
|||
|
Maximum input voltage
|
30Vp-p
|
|||
DIMENSIONS
